• DRIVER MOLLE PANEL – Qty 1
• PASSENGER MOLLE PANEL – Qty 1
• DRIVER TOP MOLLE SUPPORT BRACKET – Qty 1
• DRIVER MID MOLLE SUPPORT BRACKET – Qty 1
• DRIVER BACK MOLLE SUPPORT BRACKET – Qty 1
• PASSENGER TOP SUPPORT BRACKET – Qty 1
• PASSENGER TOP MID SUPPORT BRACKET – Qty 1
• PASSENGER BACK SUPPORT BRACKET – Qty 1
• NYLON LOCK NUT M6-1.0 – Qty 16
• 5MM ALLEN BOLT M8x1.25 – Qty 16
• M8 WASHERS – Qty 28
• NYLON LOCK NUT M8-1.25 – Qty 12

• 5MM ALLEN KEY
• 10MM SOCKET
• 13MM SOCKET
• MASKING TAPE
• PROTECTIVE TOWELS/BLANKETS

• 10mm M6 ROOF RAIL SUPPORT BRACKET LOCK NUTS – 12 ft/lb
• 13MM M8 MOLLE PANEL SUPPORT BRACKET LOCK NUTS – 15 ft/lb
• 5MM M8 ROOF RAIL SUPPORT BRACKET END PLATE/MOLLE PANEL ALLEN BOLTS – 12 ft/lbs

This product carries a lifetime warranty against mechanical failure or corrosion. It can be exchanged for an identical item, or a similar item as determined by Unplugged Performance. It may not be returned for cash or credit. There is no warranty regarding surface imperfections or aesthetic damage incurred during regular use, and/or damage to the brackets from an impact or other unusual driving circumstance.

By installing or using this product, you understand and agree with the following: If you do not agree, do not proceed with the installation and return this product within 30 days for a full refund of the purchase price from the company from which you have purchased it.

• I understand and agree that this product is intended to be installed for use on private roads and in jurisdictions where the use of this product is deemed legal by the local authorities. Furthermore, I understand and agree Unplugged Performance does not have any knowledge or control of regulations in my local jurisdiction, and it is up to me to determine if the product is acceptable for use with my vehicle.
• I understand that Unplugged Performance has done testing of this product on road and on closed racetracks but does not have the ability to test the vehicle for localized standards and regulations.
• I understand and agree that if the vehicle manufacturer determines that any Unplugged Performance products have contributed to a problem with the vehicle it may affect the vehicle’s warranty. Furthermore, I understand and agree that Unplugged Performance has no duty nor ability to be involved in internal manufacturer decisions.
• I understand and agree that if this product is given to an installer for installation on my vehicle, I have read and agreed with all the previous, even if I am not personally installing these parts on my vehicle. Furthermore, I understand and agree that this product should be installed by a trained professional that is familiar with both the vehicle as well as this product. Furthermore, I understand and agree that I and/or my chosen installer will follow the installation instructions carefully and dutifully test the vehicle post-installation in a safe and controlled environment to ensure proper operation.
• I understand and agree that by installing this product Unplugged Performance and all associated persons and entities as well as the vehicle manufacturer and all associated entities must be held harmless in the event of any suit, damages, or other legal action. Furthermore, I hereby release Unplugged Performance and any associated entities from any and all liability for any potential claim or claims.

If you do not agree with any of the above statements, you should return the product immediately.

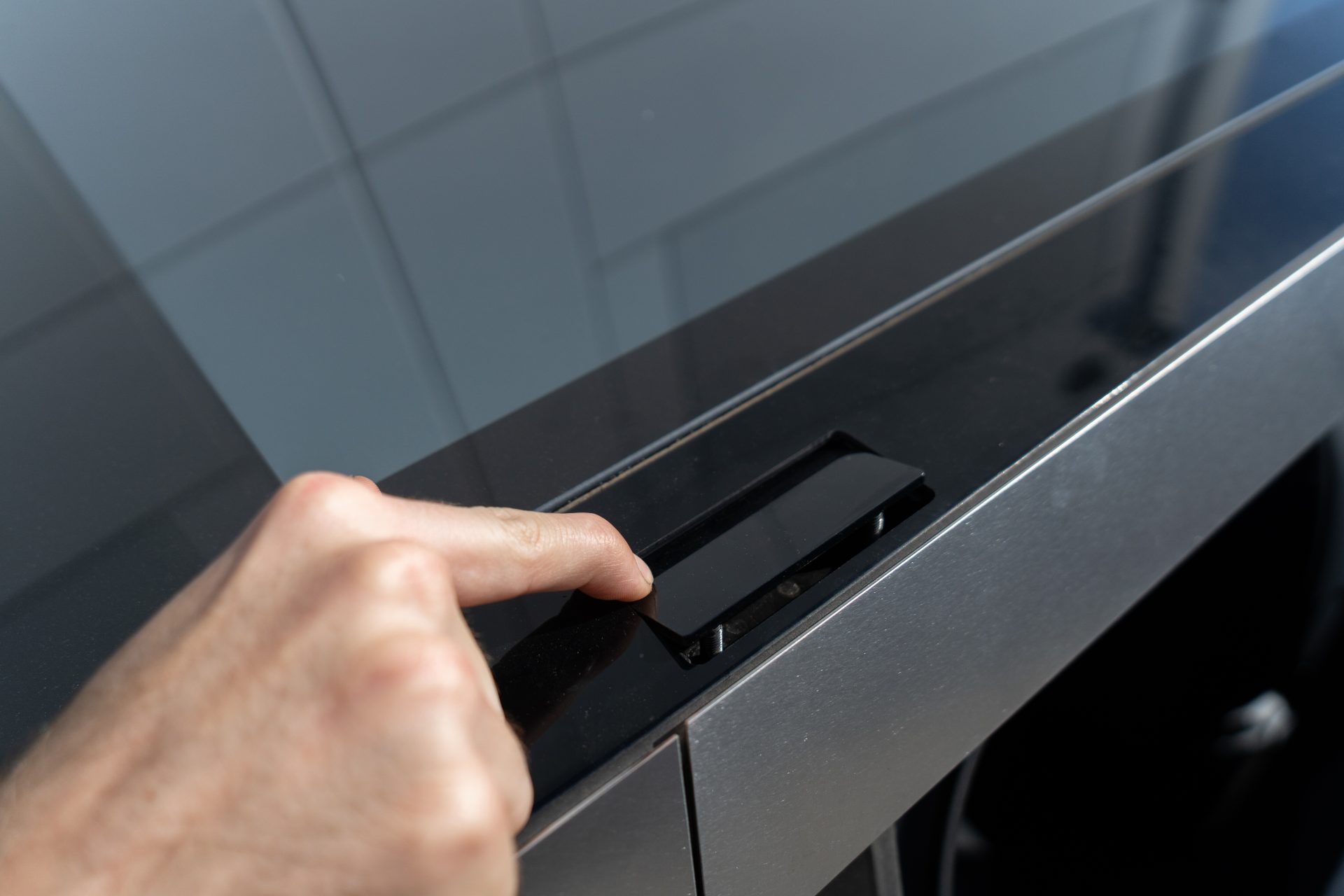

First, open each of the rear 6 factory anchor point covers to access the factory mounting points by pressing the inner side of the factory cover to access the M6 studs. There are 8 factory anchor point cover locations in total as shown below. You will access anchor points 2, 3, and 4.

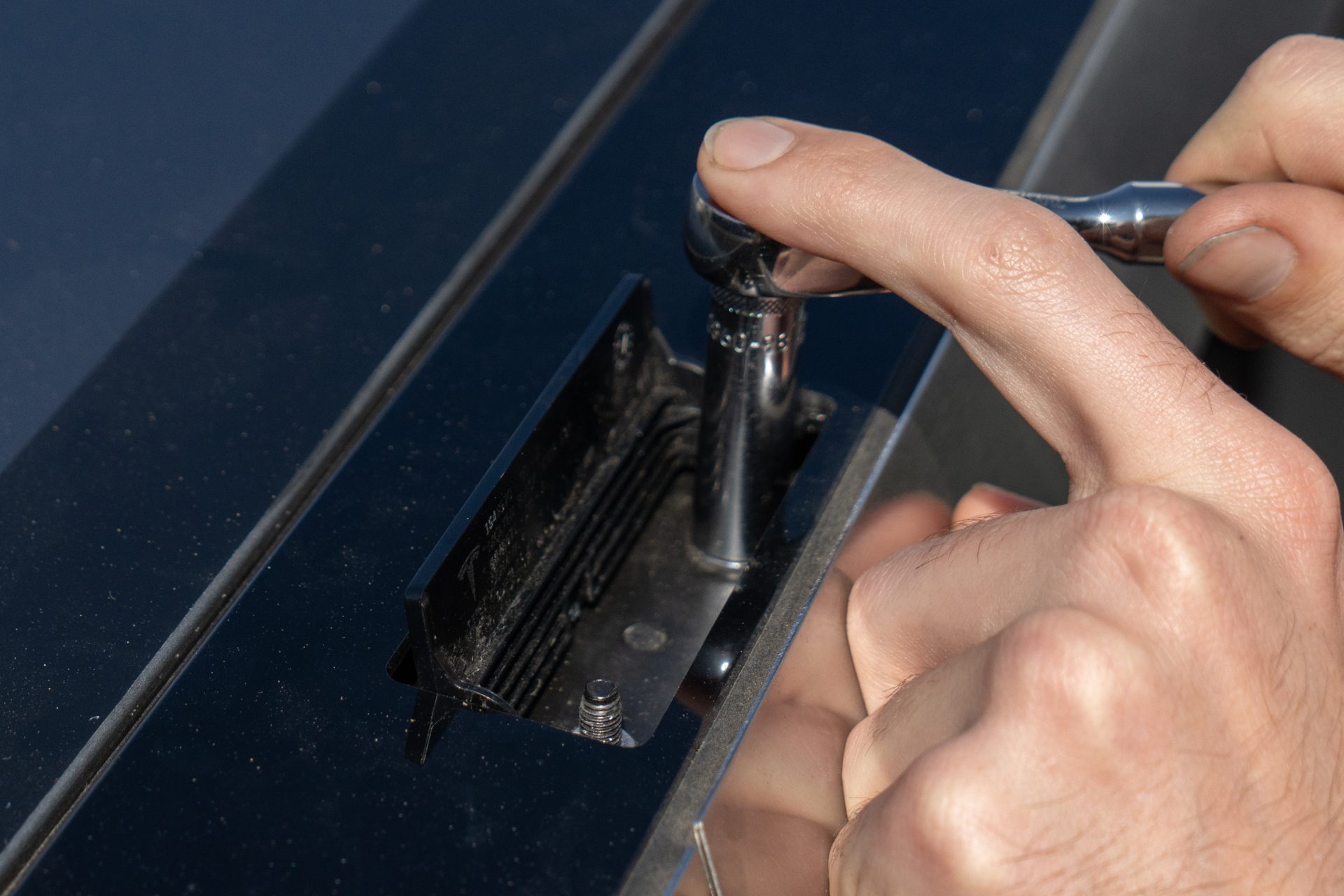

Using a 10mm socket, remove the factory nuts from factory anchor point 2. There are a total of 4 nuts that need to be removed from the vehicle.

Identify each support bracket’s intended mounting location. Each bracket is location-specific.

Place each bracket over the corresponding factory anchor point with the fixed threads facing away from the vehicle as shown below. You’ll find that the width of each bracket increases from the rear bracket to the uppermost bracket. The photo above shows the rear bracket on the left, mid bracket in the center, and uppermost bracket on the right.

Using a 10mm socket, fasten 1 provided M6 lock nut and 1 provided M6 washer to each factory anchor point loosely to secure the MOLLE panel brackets to the vehicle. Do NOT apply final torque at this time. Some small adjustments to the bracket placement can be made to accommodate both the roof rack and MOLLE panel placement.

Once all mounting brackets have been secured to the vehicle in their designated locations, apply final torque to each 10mm lock nut securing the support bracket to the factory anchor points. Torque to 10 ft/lbs.

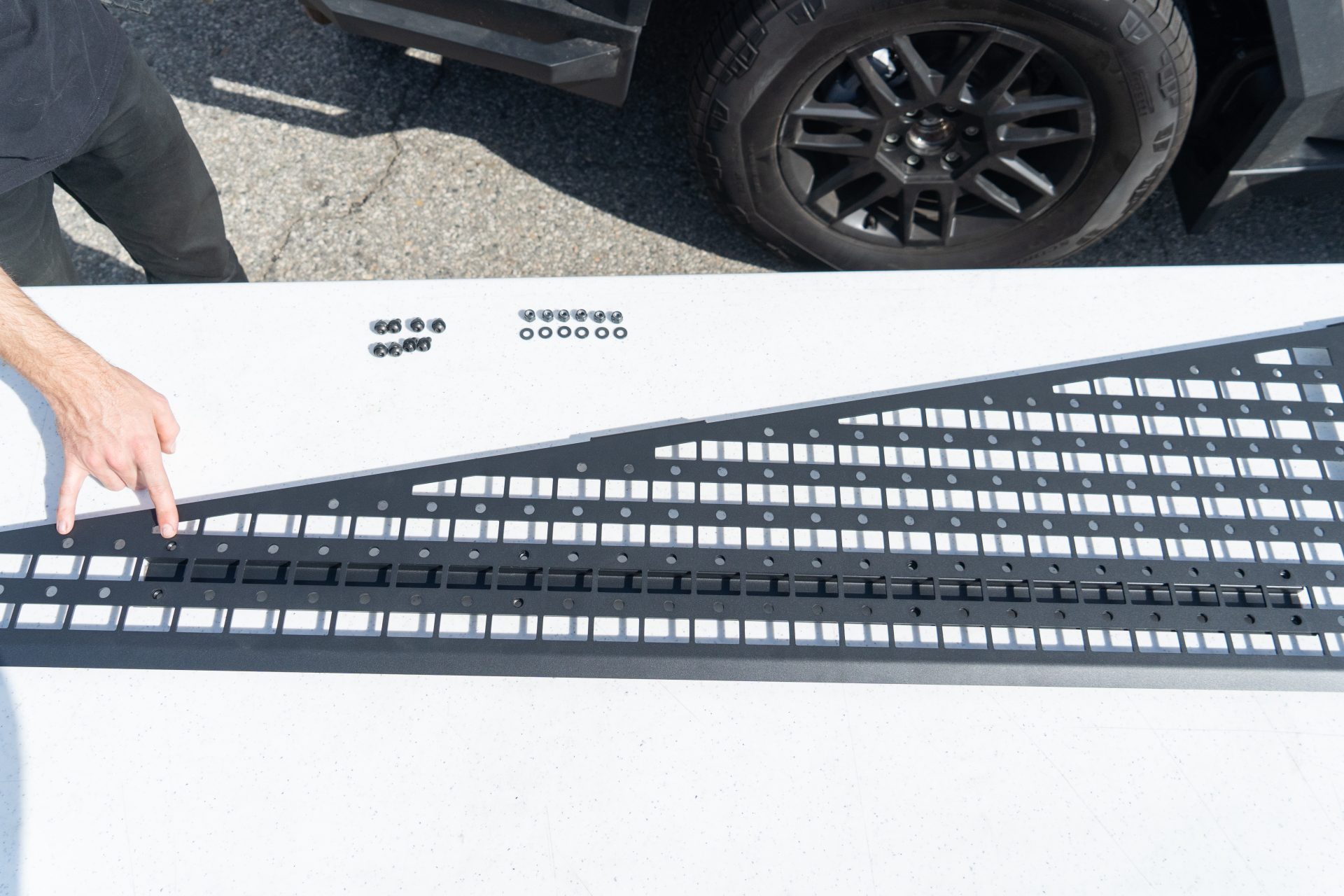

First, identify the driver and passenger MOLLE panel.

Next, using a 5mm Allen key, fasten 1 provided 5mm M8x1.25 Allen bolt, and 1 M8 washer to each threaded slot on the support bracket as shown below. We recommend the following placement.

Next, tape off a corner of the backing tape cover so it can be removed once the molle panel is in place.

Repeat this step for both MOLLE panels.

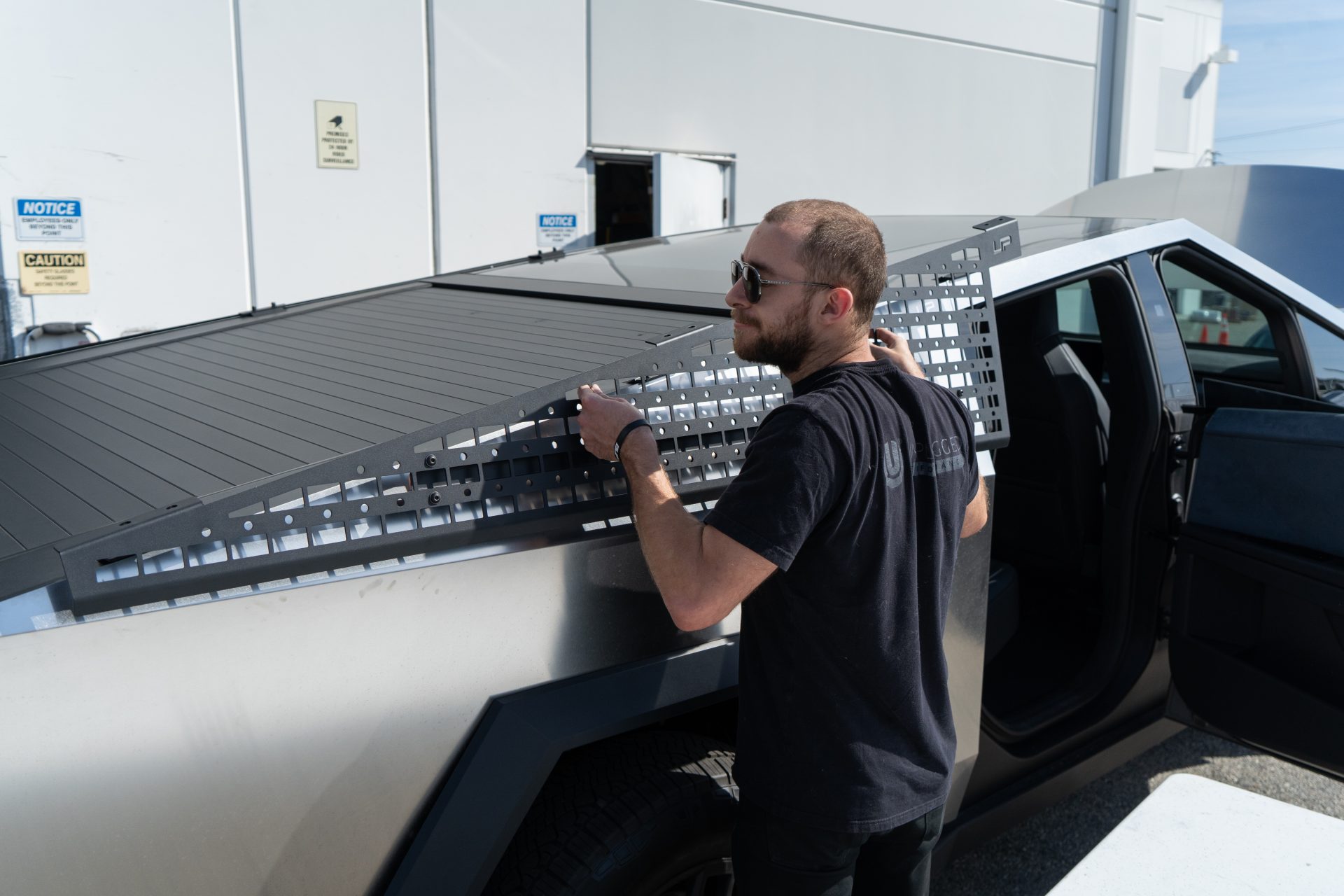

Now that the MOLLE panels have been assembled, carefully place the MOLLE panel over the support brackets as shown below. Ensure that the panel slides over the support brackets.

Note: If there is an issue sliding the MOLLE panel over the support brackets, consider loosening the support brackets and adjusting their placement forward or backward on the truck until the MOLLE panel fits over the support bracket studs accordingly. Be sure the support brackets are retorqued before the MOLLE panel is secured to the vehicle.

Using a 15mm socket, fasten a provided M8 washer and M8x1.25 lock nut to each exposed support bracket stud. There are 2 studs per support bracket, and 3 support brackets per MOLLE panel.

Once all mocknuts have been secured to the support bracket studs, torque to 12 ft/lbs.

Once the hardware has been torqued accordingly, you will have one person lightly lift the molle panel away and downward from the vehicle to allow for clearance. The other person will pull the tape backing off.

Once the tape backing has been removed, you will lightly pull the molle panel down and away from the vehicle in a slow sweeping motion until the support bracket is pressed against the rear quarter panel.

Repeat steps 1 through 4 for the other side of the vehicle to complete your installation.

Congratulations! Your Installation is complete!

If you have any outstanding questions or concerns, please reach out to the Customer Support by calling 213-279-7420, OR by emailing us at support@unpluggedperformance.com with your name, order number, and context regarding your concerns.
