Tesla Model 3 - Wheel And Tire Guide

Welcome to the ultimate Tesla wheel and tire guide—a comprehensive resource tailored for Tesla enthusiasts and owners of the Tesla Model S, Model 3, Model X, Model Y and Cybertruck. This guide provides all the critical details you need to upgrade or replace your wheels and tires with confidence. You'll find specifications for OEM and aftermarket options, including wheel diameters and widths, offsets, bolt pattern, center bore, and OEM tire sizes and compatibility for every Tesla model. Plus, explore our premium aftermarket wheel options like UP Forged wheels or our wheels in collaboration with BBS, all designed and engineered for style, strength and performance. Navigate by model to ensure your Tesla is equipped with the best fitment, whether you’re seeking maximum performance, on-track or off-road, or looking to improve range efficiency and aesthetic appeal.
2024+ Tesla Model 3
2017-2023 Tesla Model 3
Tesla Model 3 – Wheel And Tire Guide

2024+ Tesla Model 3

The refreshed 2024+ Tesla Model 3 builds on its predecessor’s success with improved powertrain, suspension upgrades, aerodynamic enhancements and interior upgrades. Wheel options range from the factory 18″ Photon, to the 19″ Nova and the first-ever staggered fitment for Model 3 Performance with the Warp wheel design that measures 20” by 9” in the front, and 10” in the rear to account for the car’s additional power. Our comprehensive guide includes detailed specifications for our aftermarket options including staggered UP-03 and UP-05 Forged wheels in 19” and 20” options that allow for retention of OEM tires and TPMS sensors while offering lower offsets for a more aggressive OEM+ stance. Other benefits include lightweight designs that maximize strength to improve handling dynamics. Wider tire fitments include widths ranging from 275 to 295 for maximum track and canyon trips.

2024+ Tesla Model 3 / Model 3 Performance

OEM Wheel & Tire Guide

BELOW IS THE COLLECTION for 2024+ Tesla Model 3

18" Tesla Model 3 - Photon Aero Wheel
Model Years
2024+
Size + Offset
18x8.5" +40
Bolt Pattern
5x114.3
Center Bore
64.1mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 lb-ft
Weight (lbs)
TBD
Weight (kgs)
TBD
Standard/Optional
Standard
OEM Tire Size
235/45R18
Tire Overall Diameter
26.3"
Tesla-Installed Tire
Michelin Primacy A/S
19" Tesla Model 3 - Nova Wheel
Model Years
2024+
Size + Offfset
19x8.5" +40
Bolt Pattern
5x114.3
Center Bore
64.1mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 lb-ft
Weight (lbs)
TBD
Weight (kgs)
TBD
Standard/Optional
Optional: $1,500
OEM Tire Size
235/40R19
Tire Overall Diameter
26.4"
Tesla-Installed Tire
Goodyear Eagle Sport / Continental ProContact RX All Season T1
20’’ Tesla Model 3 - Warp Wheels
Model Years
2024+
Size + Offset
Front: 20x9" +34 / Rear: 20x10" +45
Bolt Pattern
5x114.3
Center Bore
64.1mm
Lug Nut Size
21 mm / 14x1.50 Thread
Lug Nut Torque Spec
129 lb-ft
Weight (lbs)
Front: 22.7 lbs (24.3 lbs w/ cover) / Rear: 23.4 lbs (25.0 lbs w/ cover)
Weight (kgs)
Front: 10.29 kgs (11.02 kgs w/ cover) / Rear: 10.61 kgs (10.89 kgs w/cover)
Standard/Optional
Standard on Performance Models
OEM Tire Size
Front: 235/35R20 / Rear: 275/30R20
Tire Overall Diameter
Front: 26.5" / Rear: 26.5"
Tesla-Installed Tire
Pirelli P Zero 4

2024+ Tesla Model 3 / Performance

Wheel & Tire Guide for UP Wheels

UP-02
18" 19" 20"
Model Years
All Years
Size + Offset
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    18x9+20 - 19.1 lbs
    Weight (kgs)
    18x9+20 - 8.66 kg
    Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+33 Rear: 19x9+33
  • Front: 19x9.5+35 Rear: 19x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    19x9+33 - 20.5
    Weight (kgs)
    19x9+33 - 9.30 kg
    Recommended Tire Size
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    20x9+33 - 21.5 lbs
    Weight (kgs)
    20x9+33 - 9.75 kg
    Recommended Tire Size
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • UP-03
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Front: 18x10.9+37 Rear: 18x10.9+37
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 18x9+20 - 19.62 lbs
  • 18x9+33 - 18.8 lbs
  • 18x9.5+35 - 19.82 lbs
  • 18x10.5+40 - 20.88 lbs
  • 18x10.9+22 - 21.90 lbs
  • 18x10.9+37 - 21.10 lbs
  • Weight (kgs)
  • 18x9+20 - 8.90 kg
  • 18x9+33 - 8.53 kg
  • 18x9.5+35 - 8.99 kg
  • 18x10.5+40 - 9.47 kg
  • 18x10.9+22 - 9.93 kg
  • 18x10.9+37 - 9.57 kg
  • Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • 295/35R18 / 295/35R18 - Front: 18x10.9+37 Rear: 18x10.9+37
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+25 Rear: 19x10+30
  • Front: 19x9+33 Rear: 19x9+33
  • Front: 19x9.5+35 Rear: 19x9.5+35
  • Front: 19x10+30 Rear: 19x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 19x9+33 - 20.00 lbs
  • 19x9.5+35 - 20.56 lbs
  • 19x10.5+40 - 21.04 lbs
  • Weight (kgs)
  • 19x9+33 - 9.07 kg
  • 19x9.5+35 - 9.33 kg
  • 19x10.5+40 - 9.54 kg
  • Recommended Tire Size
  • 245/40R19 / 275/35R19 - Front: 19x9+25 Rear: 19x10+30
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • 275/35R19 / 275/35R19 - Front: 19x10+30 Rear: 19x10+30
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+25 Rear: 20x10+30
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Front: 20x10+30 Rear: 20x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 20x9+33 - 21.38 lbs
  • 20x9.5+35 - 21.46 lbs
  • 20x10.5+40 - 21.98 lbs
  • 21x10.5+40 - 24.08 lbs
  • Weight (kgs)
  • 20x9+33 - 9.70 kg
  • 20x9.5+35 - 9.73 kg
  • 20x10.5+40 - 9.97 kg
  • 21x10.5+40 -10.92 kg
  • Recommended Tire Size
  • 235/35R20 / 275/30R20 - Front: 20x9+25 Rear: 20x10+30
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • 275/30R20 / 275/30R20 - Front: 20x10+30 Rear: 20x10+30

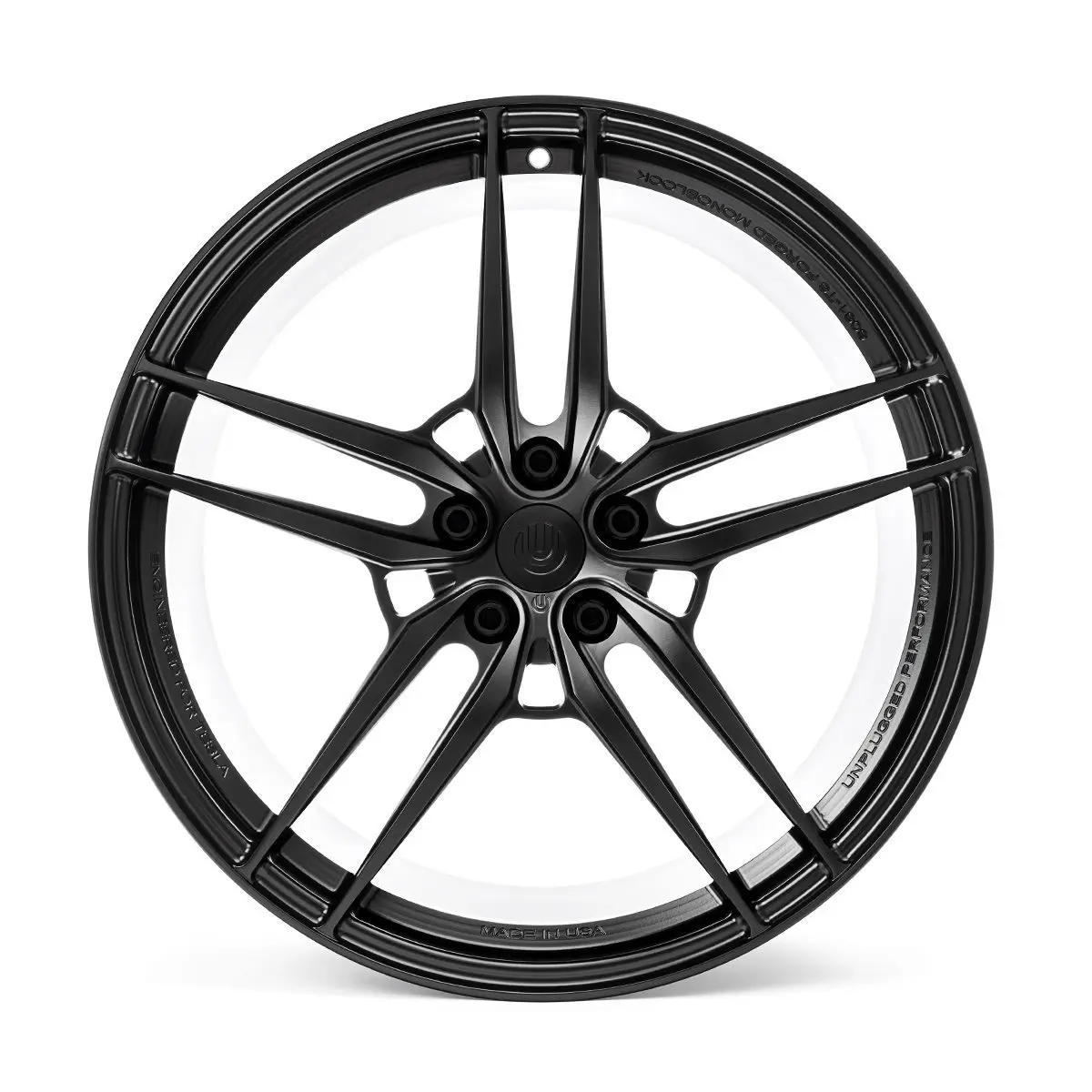

  • UP-04
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    Weight (kgs)
    Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+33 Rear: 19x9+33
  • Front:19x9.5+35 Rear: 19x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    Weight (kgs)
    Recommended Tire Size
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    Weight (kgs)
    Recommended Tire Size
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35

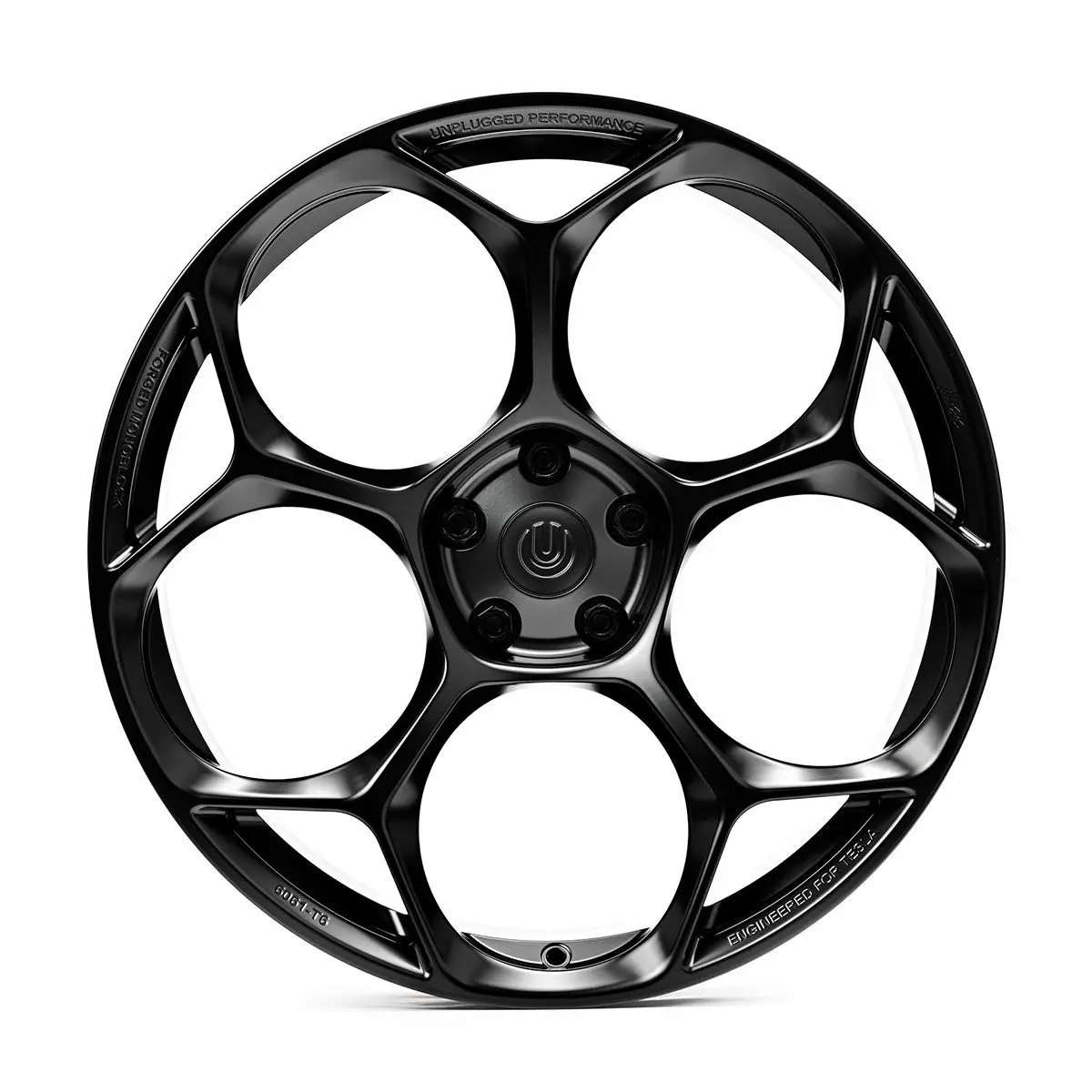

  • UP-05
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 18x9+20 - 20.88 lbs
  • 18x9+33 - 21.30 lbs
  • 18x9.5+35 - 21.52 lbs
  • Weight (kgs)
  • 18x9+20 - 9.47 kg
  • 18x9+33 - 9.66 kg
  • 18x9.5+35 - 9.76 kg
  • Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+25 Rear: 19x10+30
  • Front: 19x9+33 Rear: 19x9+33
  • Front: 19x9.5+35 Rear: 19x9.5+35
  • Front: 19x10+30 Rear: 19x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 19x9+33 - 22.64 lbs
  • 19x9.5+35 - 22.80 lbs
  • 19x10.5+40 - 23.22 lbs
  • Weight (kgs)
  • 19x9+33 - 10.27 kg
  • 19x9.5+35 - 10.34 kg
  • 19x10.5+40 - 10.53 kg
  • Recommended Tire Size
  • 245/40R19 / 275/35R19 - Front: 19x9+25 Rear: 19x10+30
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • 275/35R19 / 275/35R19 - Front: 19x10+30 Rear: 19x10+30
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+25 Rear: 20x10+30
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Front: 20x10+30 Rear: 20x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 20x9+25 - 23.84 lbs
  • 20x9+33 - 23.76 lbs
  • 20x9.5+35 - 24.10 lbs
  • 20x10+30 - 24.82 lbs
  • 20x10.5+40 - 24.56 lbs
  • 21x9.5+35 - 25.62 lbs
  • 21x10.5+40 - 26.5 lbs
  • Weight (kgs)
  • 20x9+25 - 10.81 kg
  • 20x9+33 - 10.77 kg
  • 20x9.5+35 - 10.93 kg
  • 20x10+30 - 11.26 kg
  • 20x10.5+40 - 11.14 kg
  • 21x9.5+35 - 11.62 kg
  • 21x10.5+40 - 12.02 kg
  • Recommended Tire Size
  • 235/35R20 / 275/30R20 - Front: 20x9+25 Rear: 20x10+30
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • 275/30R20 / 275/30R20 - Front: 20x10+30 Rear: 20x10+30

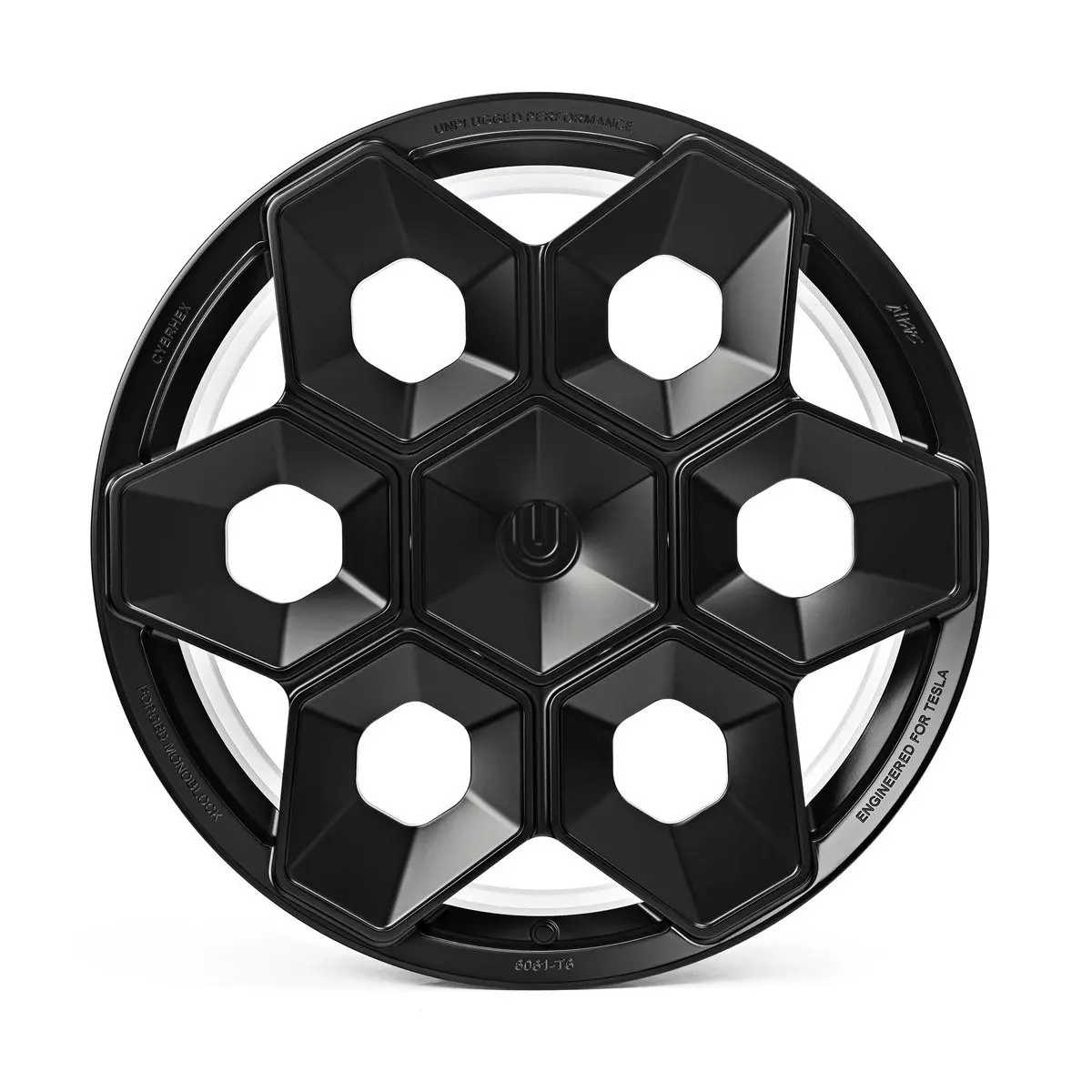

  • CYBRHEX
    20"
    Model Years
    All Years
    Size + Offset
    Front: 20x9.5+35 Rear: 20x9.5+35
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    20x9.5+35 - 31.24 lbs
    Weight (kgs)
    20x9.5+35 - 14.17 kg
    Recommended Tire Size
    265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
    UP X BBS FLUGPLATZ
    20"
    Model Years
    All Years
    Size + Offset
    Front: 20x9+32 Rear: 20x9+32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    20x9+32 - 28.80 lbs
    Weight (kgs)
    20x9+32 - 13.07 kg
    Recommended Tire Size
    255/35R20 / 255/35R20 - Front: 20x9+32 Rear: 20x9+32

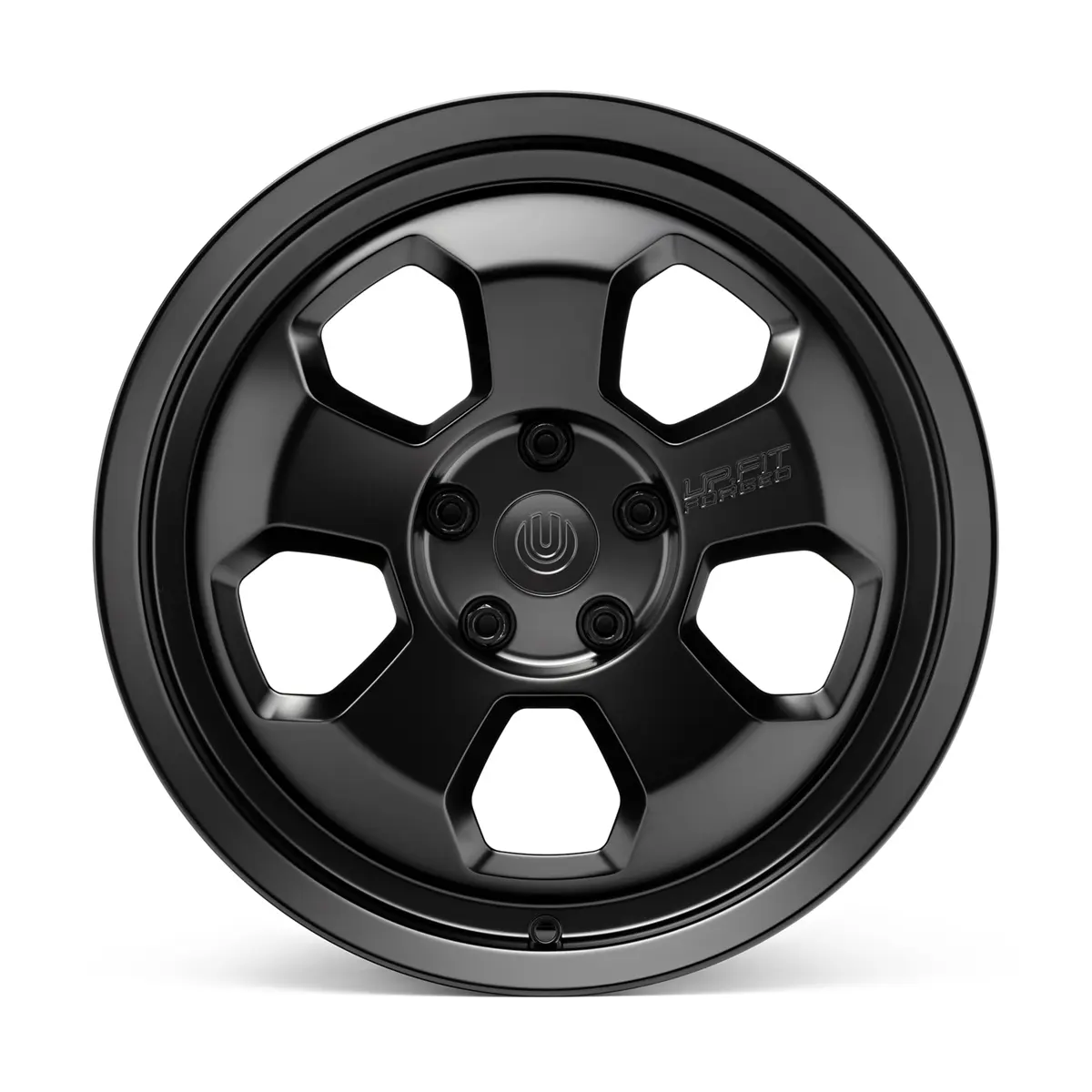

    UP.FIT Forged PD
    18"
    Model Years
    All Years
    Size + Offset
    Front: 18x8.5+30 Rear: 18x8.5+30
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    18x8.5+30 - 24.26 lbs
    Weight (kgs)
    18x8.5+30 - 11.01 kg
    Recommended Tire Size
    235/45R18 / 235/45R18 - Front: 20x9+32 Rear: 20x9+32

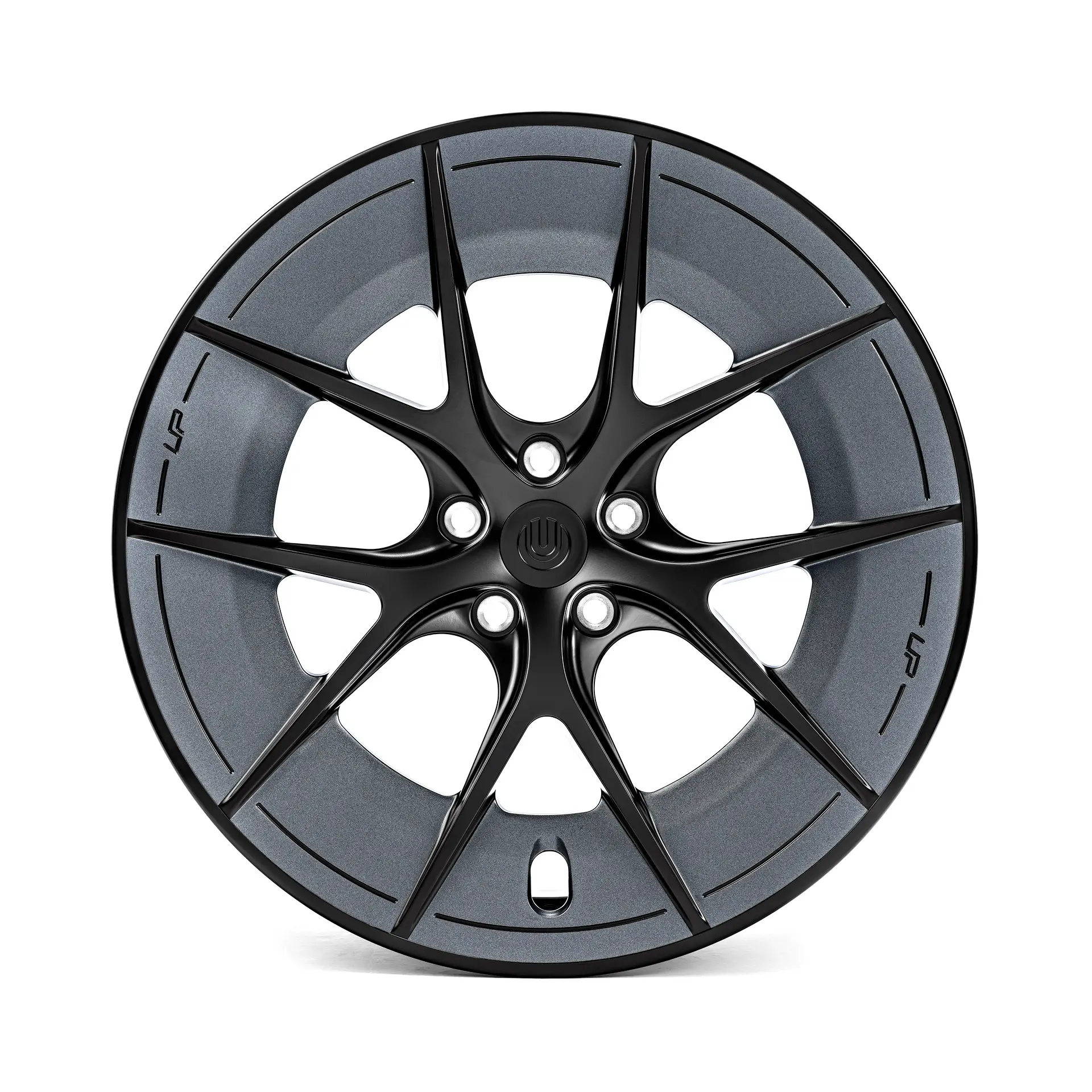

    UP-RW Wheel
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
    Front: 18x8.5 +32. Rear: 18x8.5 +32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    23.54lbs
    Weight (kgs)
    10.2kg
    Recommended Tire Size
    235/45 R18
    Model Years
    All Years
    Size + Offset
    Front: 19x8.5+32 Rear: 19x8.5+32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    23.54lbs
    Weight (kgs)
    10.7kg
    Recommended Tire Size
    235/40 19
    Model Years
    All Years
    Size + Offset
    20x8.5+32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    25.96lbs
    Weight (kgs)
    11.8kg
    Recommended Tire Size
    235/35 20
    Tesla Model 3 – Wheel And Tire Guide

    2017-2023 Tesla Model 3

    The 2017–2023 Tesla Model 3 set the standard for affordable electric vehicles and benefits from a diverse array of wheel and tire configurations for the range of models including Rear-Wheel Drive, Dual Motor Long Range and Dual Motor Performance. Factory Tesla wheels include 18″ Aero Wheels for improved range, 19″ Sport Wheels for a balanced performance aesthetic, and the iconic 20″ Überturbine Wheels found on Performance trims. Our guide covers our Unplugged Performance aftermarket upgrades that include both UP Forged wheels and UPxBBS wheels. UP lightweight wheels offer improved performance with wider fitments, and OEM+ sizes and fitments for optimized efficiency.

    2017-2023 Tesla Model 3 / Model 3 Performance

    OEM Wheel & Tire Guide

    BELOW IS THE COLLECTION for 2017-2023 Tesla Model 3

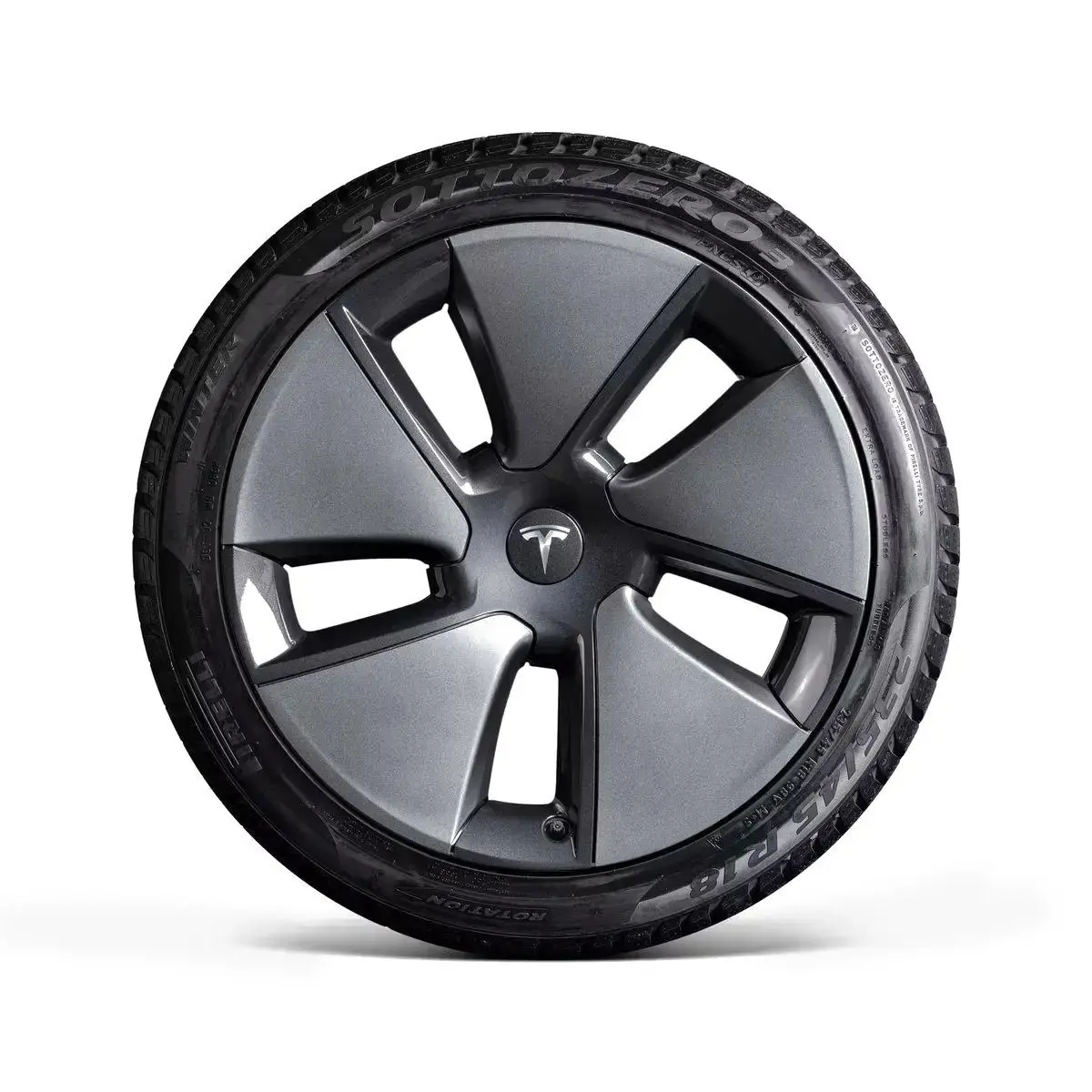

    18" Tesla Model 3 - Aero Wheel
    Model Years
    2017-2023
    Size + Offset
    18x8.5" +40
    Bolt Pattern
    5x114.3
    Center Bore
    64.1mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 lb-ft
    Weight (lbs)
    21.6 lbs (23 lbs w/ cover)
    Weight (kgs)
    9.79 kgs (10.43 kgs w cover)
    Standard/Optional
    Standard
    OEM Tire Size
    235/45R18
    Tire Overall Diameter
    26.3"
    Tesla-Installed Tire
    Michelin Primacy MXM4

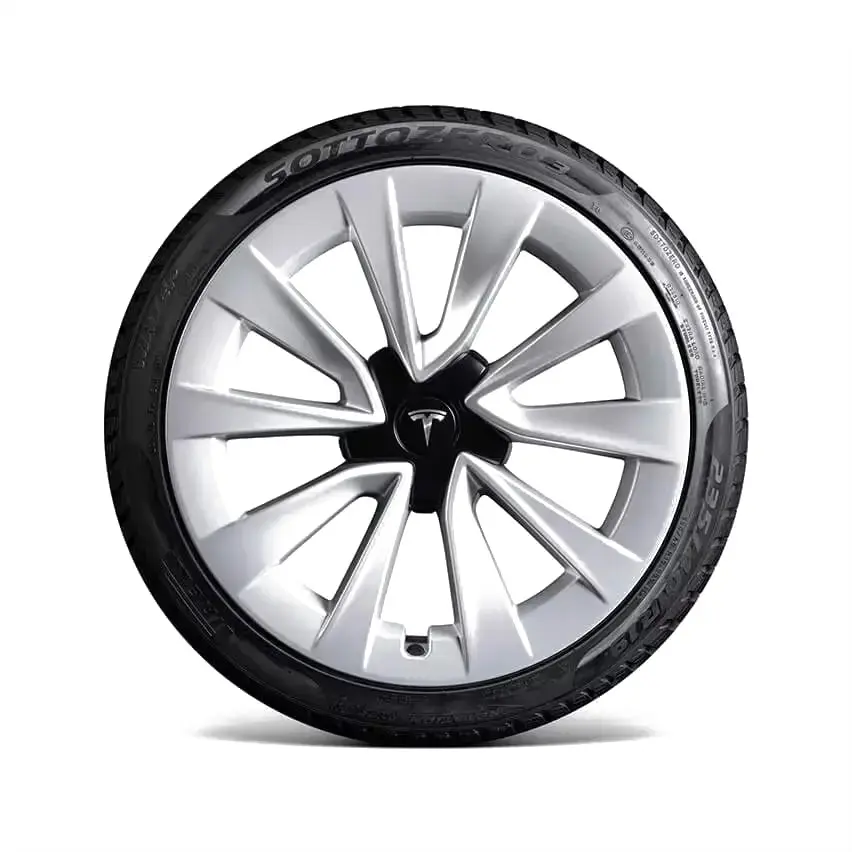

    19" Tesla Model 3 - Sport Wheel
    Model Years
    2020-2023
    Size + Offset
    19x8.5" +40
    Bolt Pattern
    5x114.3
    Center Bore
    64.1mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 lb-ft
    Weight (lbs)
    25 lbs
    Weight (kgs)
    11.34 kgs
    Standard/Optional
    Optional: $1,500
    OEM Tire Size
    235/40R19
    Tire Overall Diameter
    26.4"
    Tesla-Installed Tire
    Continental ProContact RX / Hankook Ventus S1evo3

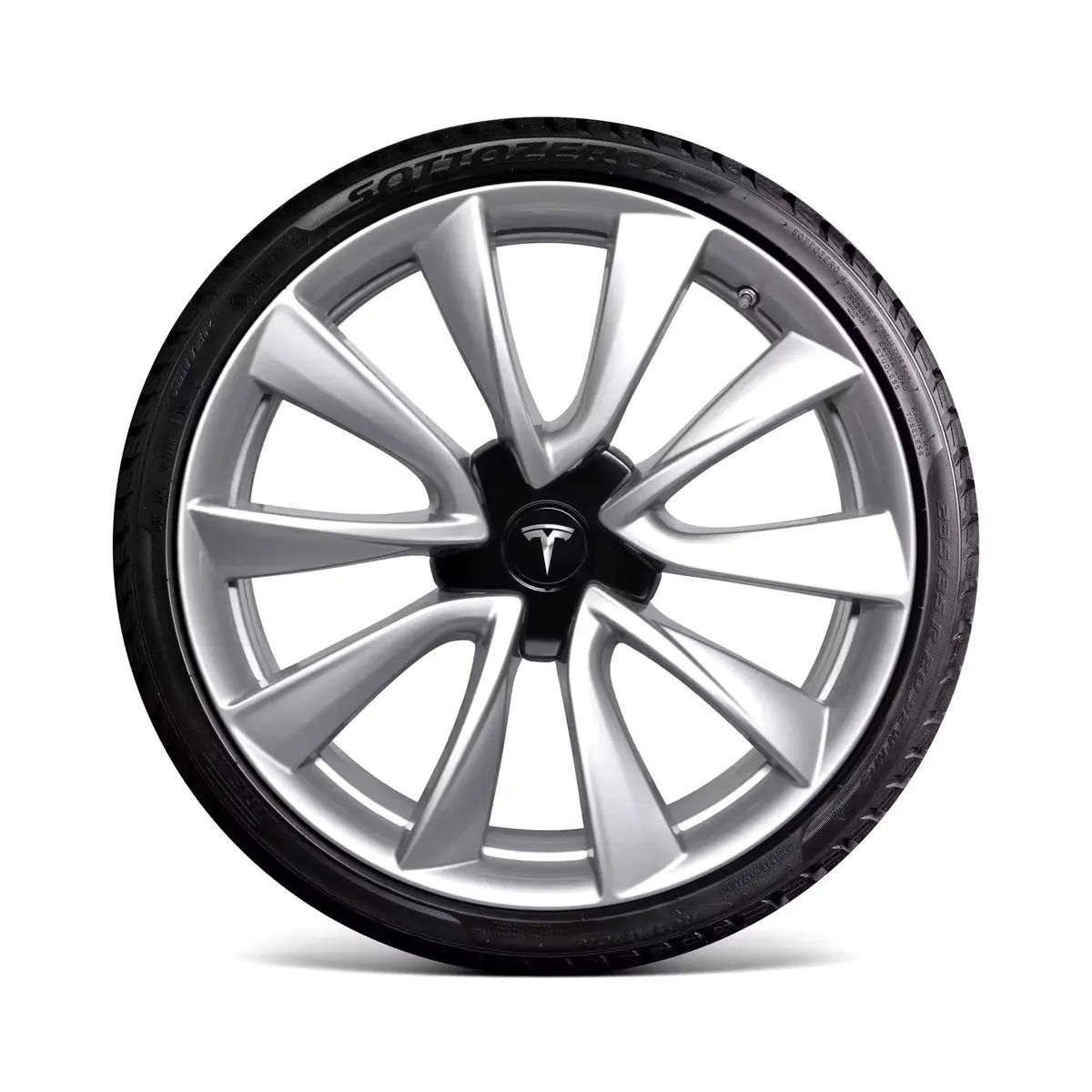

    20" Tesla Model 3 - Stiletto Wheel
    Model Years
    2018-2020
    Size + Offset
    20x8.5" +35
    Bolt Pattern
    5x114.3
    Center Bore
    64.1mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 lb-ft
    Weight (lbs)
    28.5 lbs
    Weight (kgs)
    12.93 kgs
    Standard/Optional
    Standard on Performance Models
    OEM Tire Size
    235/35R20
    Tire Overall Diameter
    26.5"
    Tesla-Installed Tire
    Michelin Pilot Sport 4S
    20" Tesla Model 3 - Zero G Wheel
    Model Years
    2020-2023
    Size + Offset
    20x9.0" +34
    Bolt Pattern
    5x114.3
    Center Bore
    64.1mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 lb-ft
    Weight (lbs)
    21.5 lbs
    Weight (kgs)
    9.75 kgs
    Standard/Optional
    Included In Track Package: $5,500
    OEM Tire Size
    245/35R20
    Tire Overall Diameter
    26.8"
    Tesla-Installed Tire
    Michelin Pilot Sport Cup 2

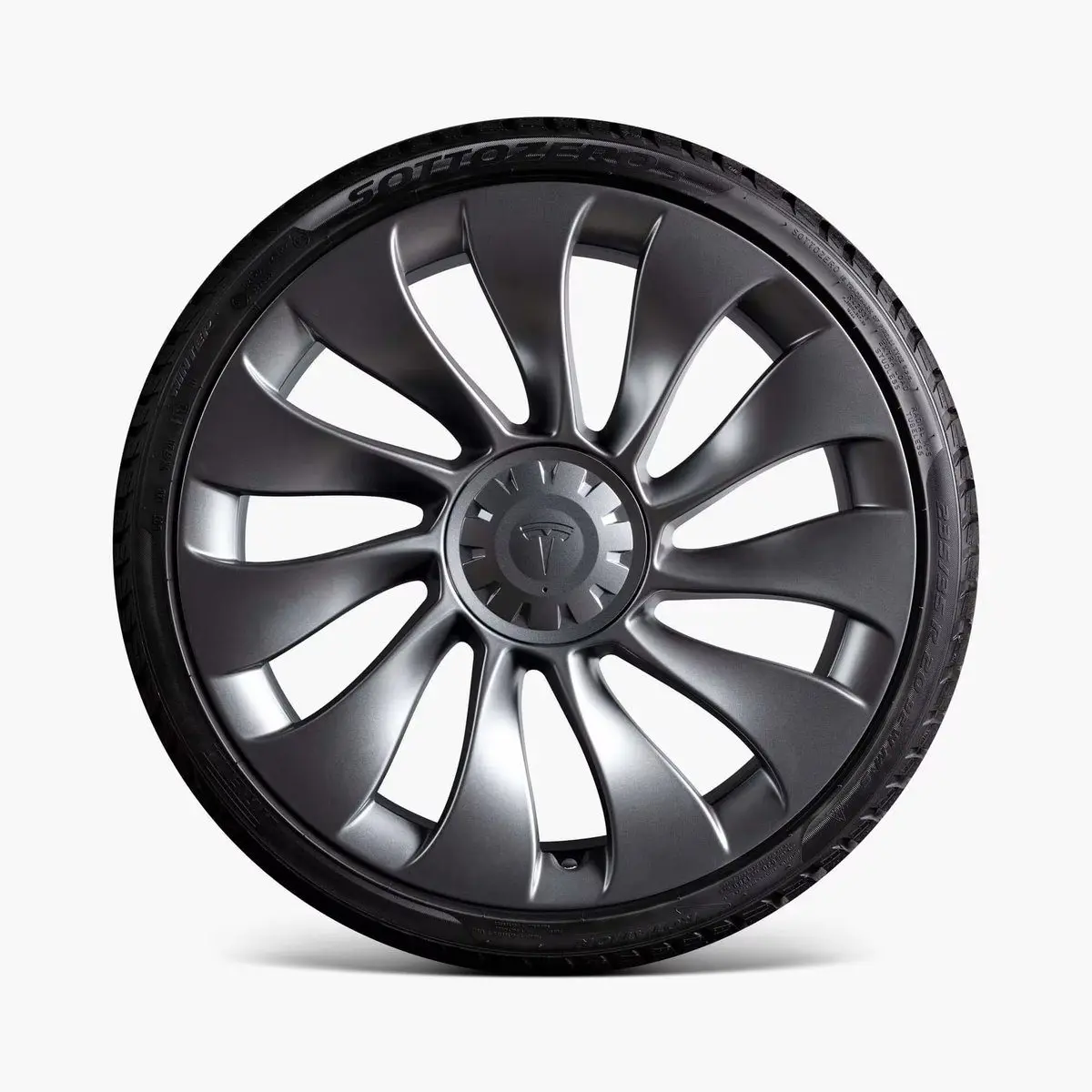

    20" Tesla Model 3 - Uberturbine Wheel
    Model Years
    2020-2023
    Size + Offset
    20x9.0" +34
    Bolt Pattern
    5x114.3
    Center Bore
    64.1mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 lb-ft
    Weight (lbs)
    32 lbs
    Weight (kgs)
    14.52 kgs
    Standard/Optional
    Standard on Performance Models
    OEM Tire Size
    235/35R20
    Tire Overall Diameter
    26.5"
    Tesla-Installed Tire
    Pirelli P Zero

    2017-2023 Tesla Model 3 / Model 3 Performance

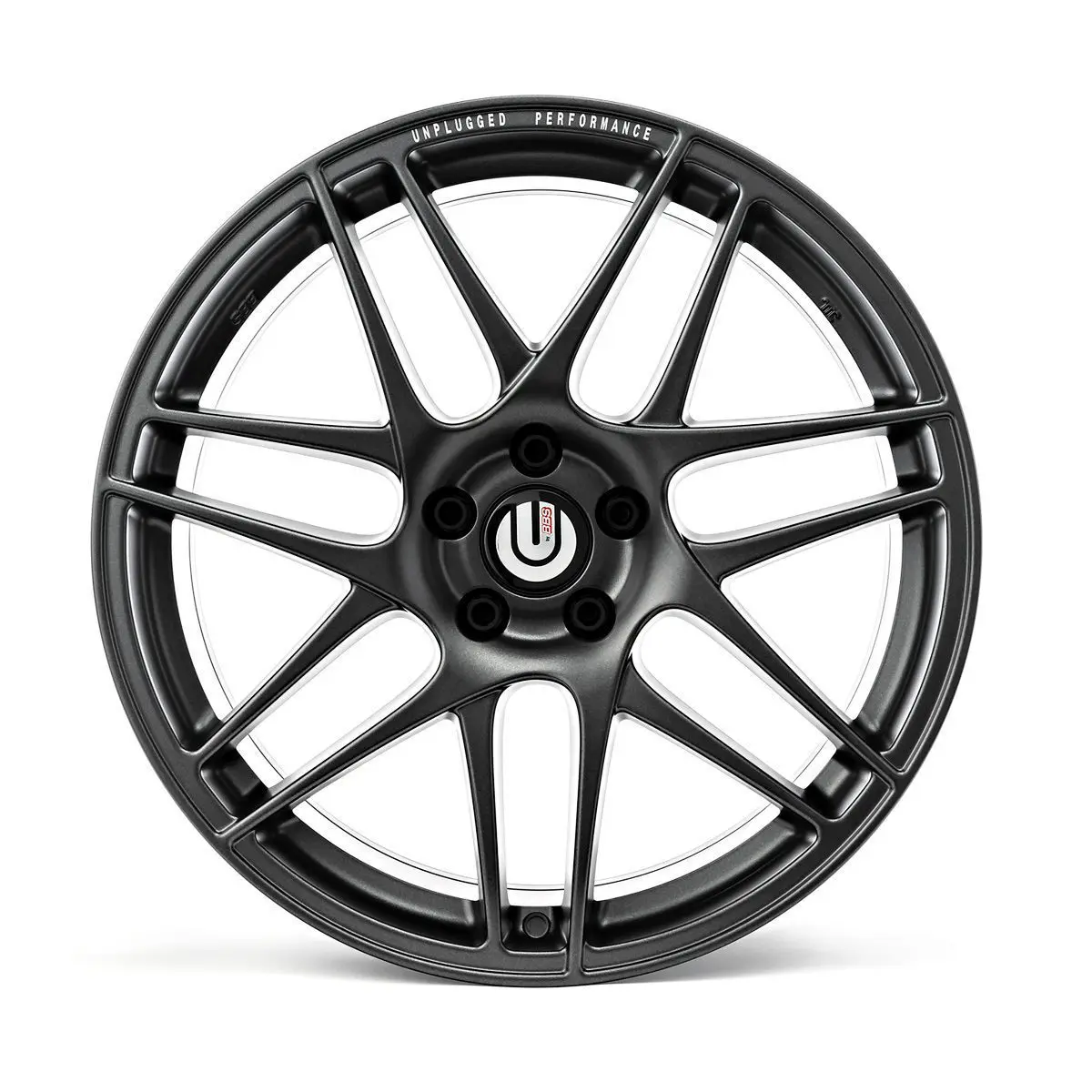

    Wheel & Tire Guide for UP Wheels

    UP-02
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    18x9+20 - 19.1 lbs
    Weight (kgs)
    18x9+20 - 8.66 kg
    Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+33 Rear: 19x9+33
  • Front: 19x9.5+35 Rear: 19x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    19x9+33 - 20.5
    Weight (kgs)
    19x9+33 - 9.30 kg
    Recommended Tire Size
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    20x9+33 - 21.5 lbs
    Weight (kgs)
    20x9+33 - 9.75 kg
    Recommended Tire Size
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • UP-03
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Front: 18x10.9+37 Rear: 18x10.9+37
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 18x9+20 - 19.62 lbs
  • 18x9+33 - 18.8 lbs
  • 18x9.5+35 - 19.82 lbs
  • 18x10.5+40 - 20.88 lbs
  • 18x10.9+22 - 21.90 lbs
  • 18x10.9+37 - 21.10 lbs
  • Weight (kgs)
  • 18x9+20 - 8.90 kg
  • 18x9+33 - 8.53 kg
  • 18x9.5+35 - 8.99 kg
  • 18x10.5+40 - 9.47 kg
  • 18x10.9+22 - 9.93 kg
  • 18x10.9+37 - 9.57 kg
  • Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • 295/35R18 / 295/35R18 - Front: 18x10.9+37 Rear: 18x10.9+37
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+25 Rear: 19x10+30
  • Front: 19x9+33 Rear: 19x9+33
  • Front: 19x9.5+35 Rear: 19x9.5+35
  • Front: 19x10+30 Rear: 19x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 19x9+33 - 20.00 lbs
  • 19x9.5+35 - 20.56 lbs
  • 19x10.5+40 - 21.04 lbs
  • Weight (kgs)
  • 19x9+33 - 9.07 kg
  • 19x9.5+35 - 9.33 kg
  • 19x10.5+40 - 9.54 kg
  • Recommended Tire Size
  • 245/40R19 / 275/35R19 - Front: 19x9+25 Rear: 19x10+30
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • 275/35R19 / 275/35R19 - Front: 19x10+30 Rear: 19x10+30
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+25 Rear: 20x10+30
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Front: 20x10+30 Rear: 20x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 20x9+33 - 21.38 lbs
  • 20x9.5+35 - 21.46 lbs
  • 20x10.5+40 - 21.98 lbs
  • 21x10.5+40 - 24.08 lbs
  • Weight (kgs)
  • 20x9+33 - 9.70 kg
  • 20x9.5+35 - 9.73 kg
  • 20x10.5+40 - 9.97 kg
  • 21x10.5+40 -10.92 kg
  • Recommended Tire Size
  • 235/35R20 / 275/30R20 - Front: 20x9+25 Rear: 20x10+30
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • 275/30R20 / 275/30R20 - Front: 20x10+30 Rear: 20x10+30
  • UP-04
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    Weight (kgs)
    Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+33 Rear: 19x9+33
  • Front:19x9.5+35 Rear: 19x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    Weight (kgs)
    Recommended Tire Size
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    Weight (kgs)
    Recommended Tire Size
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • UP-05
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
  • Front: 18x9+20 Rear: 18x9+20
  • Front: 18x9+33 Rear: 18x9+33
  • Front: 18x9.5+35 Rear: 18x9.5+35
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 18x9+20 - 20.88 lbs
  • 18x9+33 - 21.30 lbs
  • 18x9.5+35 - 21.52 lbs
  • Weight (kgs)
  • 18x9+20 - 9.47 kg
  • 18x9+33 - 9.66 kg
  • 18x9.5+35 - 9.76 kg
  • Recommended Tire Size
  • 245/45R18 / 245/45R18 - Front: 18x9+20 Rear: 18x9+20
  • 245/45R18 / 245/45R18 - Front: 18x9+33 Rear: 18x9+33
  • 265/40R18 / 265/40R18 - Front: 18x9.5+35 Rear: 18x9.5+35
  • Model Years
    All Years
    Size + Offset
  • Front: 19x9+25 Rear: 19x10+30
  • Front: 19x9+33 Rear: 19x9+33
  • Front: 19x9.5+35 Rear: 19x9.5+35
  • Front: 19x10+30 Rear: 19x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 19x9+33 - 22.64 lbs
  • 19x9.5+35 - 22.80 lbs
  • 19x10.5+40 - 23.22 lbs
  • Weight (kgs)
  • 19x9+33 - 10.27 kg
  • 19x9.5+35 - 10.34 kg
  • 19x10.5+40 - 10.53 kg
  • Recommended Tire Size
  • 245/40R19 / 275/35R19 - Front: 19x9+25 Rear: 19x10+30
  • 245/40R19 / 245/40R19 - Front: 19x9+33 Rear: 19x9+33
  • 265/35R19 / 265/35R19 - Front: 19x9.5+35 Rear: 19x9.5+35
  • 275/35R19 / 275/35R19 - Front: 19x10+30 Rear: 19x10+30
  • Model Years
    All Years
    Size + Offset
  • Front: 20x9+25 Rear: 20x10+30
  • Front: 20x9+33 Rear: 20x9+33
  • Front: 20x9.5+35 Rear: 20x9.5+35
  • Front: 20x10+30 Rear: 20x10+30
  • Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
  • 20x9+25 - 23.84 lbs
  • 20x9+33 - 23.76 lbs
  • 20x9.5+35 - 24.10 lbs
  • 20x10+30 - 24.82 lbs
  • 20x10.5+40 - 24.56 lbs
  • 21x9.5+35 - 25.62 lbs
  • 21x10.5+40 - 26.5 lbs
  • Weight (kgs)
  • 20x9+25 - 10.81 kg
  • 20x9+33 - 10.77 kg
  • 20x9.5+35 - 10.93 kg
  • 20x10+30 - 11.26 kg
  • 20x10.5+40 - 11.14 kg
  • 21x9.5+35 - 11.62 kg
  • 21x10.5+40 - 12.02 kg
  • Recommended Tire Size
  • 235/35R20 / 275/30R20 - Front: 20x9+25 Rear: 20x10+30
  • 245/35R20 / 245/35R20 - Front: 20x9+33 Rear: 20x9+33
  • 265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
  • 275/30R20 / 275/30R20 - Front: 20x10+30 Rear: 20x10+30
  • CYBRHEX
    20"
    Model Years
    All Years
    Size + Offset
    Front: 20x9.5+35 Rear: 20x9.5+35
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    20x9.5+35 - 31.24 lbs
    Weight (kgs)
    20x9.5+35 - 14.17 kg
    Recommended Tire Size
    265/30R20 / 265/30R20 - Front: 20x9.5+35 Rear: 20x9.5+35
    UP X BBS FLUGPLATZ
    20"
    Model Years
    All Years
    Size + Offset
    Front: 20x9+32 Rear: 20x9+32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    20x9+32 - 28.80 lbs
    Weight (kgs)
    20x9+32 - 13.07 kg
    Recommended Tire Size
    255/35R20 / 255/35R20 - Front: 20x9+32 Rear: 20x9+32
    UP.FIT Forged PD
    18"
    Model Years
    All Years
    Size + Offset
    Front: 18x8.5+30 Rear: 18x8.5+30
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    18x8.5+30 - 24.26 lbs
    Weight (kgs)
    18x8.5+30 - 11.01 kg
    Recommended Tire Size
    235/45R18 / 235/45R18 - Front: 20x9+32 Rear: 20x9+32
    UP-RW Wheel
    18" 19" 20"
    Model Years
    All Years
    Size + Offset
    Front: 18x8.5 +32 Rear: 18x8.5 +32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    23.40lbs
    Weight (kgs)
    10.2kg
    Recommended Tire Size
    235/45 R18
    Model Years
    All Years
    Size + Offset
    19x8.5+32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    23.54lbs
    Weight (kgs)
    10.7kg
    Recommended Tire Size
    235/40 19
    Model Years
    All Years
    Size + Offset
    20x8.5+32
    Bolt Pattern
    5x114.3
    Center Bore
    64.1 mm
    Lug Nut Size
    21 mm / 14x1.50 Thread
    Lug Nut Torque Spec
    129 ft-lbs
    Weight (lbs)
    25.96lbs
    Weight (kgs)
    11.8kg
    Recommended Tire Size
    235/35 20
    Tesla Model 3 – Wheel And Tire Guide
    Expert Wheel & Tire Guide Support
    Please get in touch with us if you need any additional info or more details regarding fitment, sizes, finishes, pricing or anything else regarding Tesla OEM or Unplugged Performance wheels & tires

      Unplugged Performance

      WHAT OUR CUSTOMERS SAY

      RATED 4.97 (303 REVIEWS)
      LEAVE A REVIEW

      With real reviews from real customers, shop UP products for your Tesla Model S, 3, X, Y and Cybertruck with confidence. Leave reviews and earn up to 2000 UP Rewards points each, redeemable towards exclusive UP Products.

      I love the front ascension fascia! Really changes the whole look of the Model 3. My least favorite part of the car was the front bumper and this changed it all for me. Noticeable improvement in downforce as well which is a nice touch. Totally transformed the car and I couldn’t be happier. Also...
      zackfeldstein9 September 24, 2022
      These carbon fiber seats are amazing in our plaid drag car. Looks like it came from Tesla just like that. ??? Thanks
      '@EvSmokeATX November 11, 2022
      An absolutely must have product! I have a 2021 Tesla Model Y Long Range and since the beginning could not stop noticing how rough the ride was. In the Bay Area the roads are ridiculously uneven and are in terrible conditions with bumps, potholes, uneven payments and much more on the roads leading...
      yoseft5167 July 04, 2023
      If love carbon fiber like I do then this is a must. Nothing compares to UP carbon coaster. The weaves are super clean, very sturdy, looks great. I couldn’t help myself and got this to add to my carbon collection.
      jesus.ruiz.2389 February 02, 2023
      You can see my photos under Steve Guevara. WHEELS, what to say about this indescribable addition. There are so many incredible things added to my SMG3, but this wheel set altered the car drastically. The RIDE is much improved with the grip around tight corners like Topanga Canyon with the other four...
      smgdcw November 17, 2022
      Beautiful wheels. These have the most style. The black matches perfectly with the blue. To complete the look, add the super light titanium lug nuts and the carbon ceramic front big brake kit, as shown in the picture.
      raviprabhakar October 03, 2022
      I purchased these as set with my coil overs and these are definite must to install. These bushing add great handling to your steering. Steering is more accurate and responds well to the drivers needs. Highly recommend!
      jesus.ruiz.2389 February 02, 2023
      Had the bars installed with the end links on my M3P, at the same time lowered with performance springs and got new tires. No regrets. The car rides flat af. I look forward to round-abouts now. Big ups to UP.
      Edmundo R. January 10, 2023
      Worth every penny. The iron BFB is one of my favorite things I’ve done to my car so far. Brakes are one of the most important things on a car and I notice such an improvement with these over stock brakes. On track I am able to brake much later into corners and the brakes have basically zero fade...
      zackfeldstein9 September 23, 2022
      I installed these parts and I am very satisfied. The quality is great, the engines don't heat up anymore and with that magnet I make sure that there are no filings in the engines. A very good investment.
      Dominic M. April 12, 2023
      These wheels deliver. I've been looking for wheels that look good and can maintain efficiency. These wheels hit both marks and have the added bonus of durability.
      Cory O. September 30, 2025
      Unplugged Performance UP Emblem You can see my photos under Steve Guevara. The UP Emblem, just another seemingly innocuous item that KIRK added to make the car pop when driving behind it. The sun shines on the titanium and it screams at you and then goes back into its subtle way. To say that I love...
      smgdcw November 17, 2022
      As part of my purchase of the Luxury Coilover Suspension for my Model Y, I included both the Front Upper Control Arms and Rear Camber Arms, to mitigate any issues with uneven tire wear. When I purchased the UP / BBS Flugplatz wheels with tires, I was relieved that the additional 2 pieces were...
      p.flores September 16, 2022
      short and simple ... NIGHT and DAY difference when turning in and out of turns and really felt as if the car was on RAILS.Had a track day at Chuckwalla Valley Raceway and when going through its famous "bowl" Turn 13 I felt planted and gave me confidence to push it more lap by lap. Overall best...
      garciajorge521 October 05, 2022
      In looking for rims for a car the first thing I think of is uniqueness. That’s what drew me to this stylish set. I feel like im the only one in LA with a ste let alone 22’s on a Y and they fit and ride flawlessly. Definitely would suggest getting a pair if you want to stand out. I see they got...
      Montage Ø. November 03, 2025
      What a difference this sway bar made to my Model S Plaid. This helps correct the body roll the car has from the factory. I have much more confidence taking turns at a higher speed, and freeway on-ramps have become extremely fun. I would highly recommend upgrading your sway bar in the Model S!
      D. H. September 08, 2022
      Dominic Marcu - Racing Driver Just perfect for my car
      Dominic M. April 12, 2023
      Vanja K. February 03, 2026
      Great complement to my Model Y's coil overs and sway bar set up. Significant handling improvements overall. Best of all, these camber arms give me the peace of mind of not worrying about uneven tire wear after dropping my ride height 1 inch. Car looks and feels great on the road.
      James_M September 05, 2022
      My Model Y now handles so much better after adding these sway bars! What a great bang for your buck upgrade- really made a huge difference. Never loved how the Model Y handled in corners (especially the newer suspension on the 2022) and this solved the problem. Car stays so much flatter in corners...
      zackfeldstein9 September 23, 2022
      Unplugged Performance Newsletter
      Subscribe to our Newsletter
      Sign up to get the latest updates on UP Products, news, galleries and offers!
      Please select all Tesla models you are interested in:
      FEATURED IN
      TeslaRati Logo 1
      Automobile Magazine Logo 1
      MotorTrend Logo 1
      AutoBlog Logo 1
      TopGear Logo 1
      Car and Driver Logo 1
      Road and Track Logo 1
      The Drive Logo 1
      AutoWeek Logo 1
      The Joe Rogan Experience Logo 1
      Unplugged Performance is the world leader in premium performance upgrades for Tesla vehicles. With our USA-made line of stylish and high-performance parts, our sole focus is on holistic development and improvement of all Tesla cars.
      Unplugged Performance was founded and incubated by the team behind the world-renowned automotive customizer Bulletproof Automotive. Unplugged Performance is the world's leading company focused on the customization and sports performance of Tesla Motors vehicles.
      All of our parts are researched and engineered on our own development vehicles with the intention of improving every aspect of the driving and ownership experience. Unplugged produces an exclusive range of premium upgrades to give a new sporty performance identity to Tesla Model S, Model X, Model 3, Model Y, and the Cybertruck.
      Improving on perfection is no easy task, and to do so Unplugged products are professionally designed, prototyped, and manufactured in-house in Hawthorne, CA, and in collaboration with the best motorsports suppliers. The supercar performance of Tesla vehicles meets supercar-grade enhancements with Unplugged Performance.
      Tesla Model Y - Premium Aftermarket Upgrades And Products
      TeslaCorsa - First Ever Tesla Dedicated Trackday
      GUARANTEED SAFE CHECKOUT WITH THESE PREMIUM PAYMENT OPTIONS
      Payment Options - American Express, Discover, Visa, MasterCard, JCB, Maestro Credit Cards Payment Options - Apple Pay, PayPal, Splitit, Dinser Club International, Union Pay Credit Cards
      TESLA, TESLA MOTORS, and all related brands, marks and intellectual property including but not limited to TESLA ROADSTER, TESLA CYBERTRUCK, MODEL S, MODEL 3, MODEL X, MODEL Y, and the "TESLA," "T" logos designs are trademarks or registered trademarks of Tesla Motors, Inc. in the United States and other countries. Unplugged Performance has no official relationship with Tesla Motors.
      THESE PRODUCTS CAN EXPOSE YOU TO CHEMICALS WHICH ARE KNOWN BY THE STATE OF CALIFORNIA TO CAUSE CANCER, OR BIRTH DEFECTS, OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION PLEASE VISIT WWW.P65WARNINGS.CA.GOV
      COPYRIGHT © 2026 UNPLUGGED PERFORMANCE®. ALL RIGHTS RESERVED.
      THE UNPLUGGED PERFORMANCE® MARK AND LOGO ARE TRADEMARKS OF UNPLUGGED PERFORMANCE INC. ALL RIGHTS RESERVED. PLEASE REVIEW THE TERMS & CONDITIONS AND PRIVACY POLICY BEFORE USING OUR WEBSITE.
      close
