2021+ MODEL S PLAID / LR

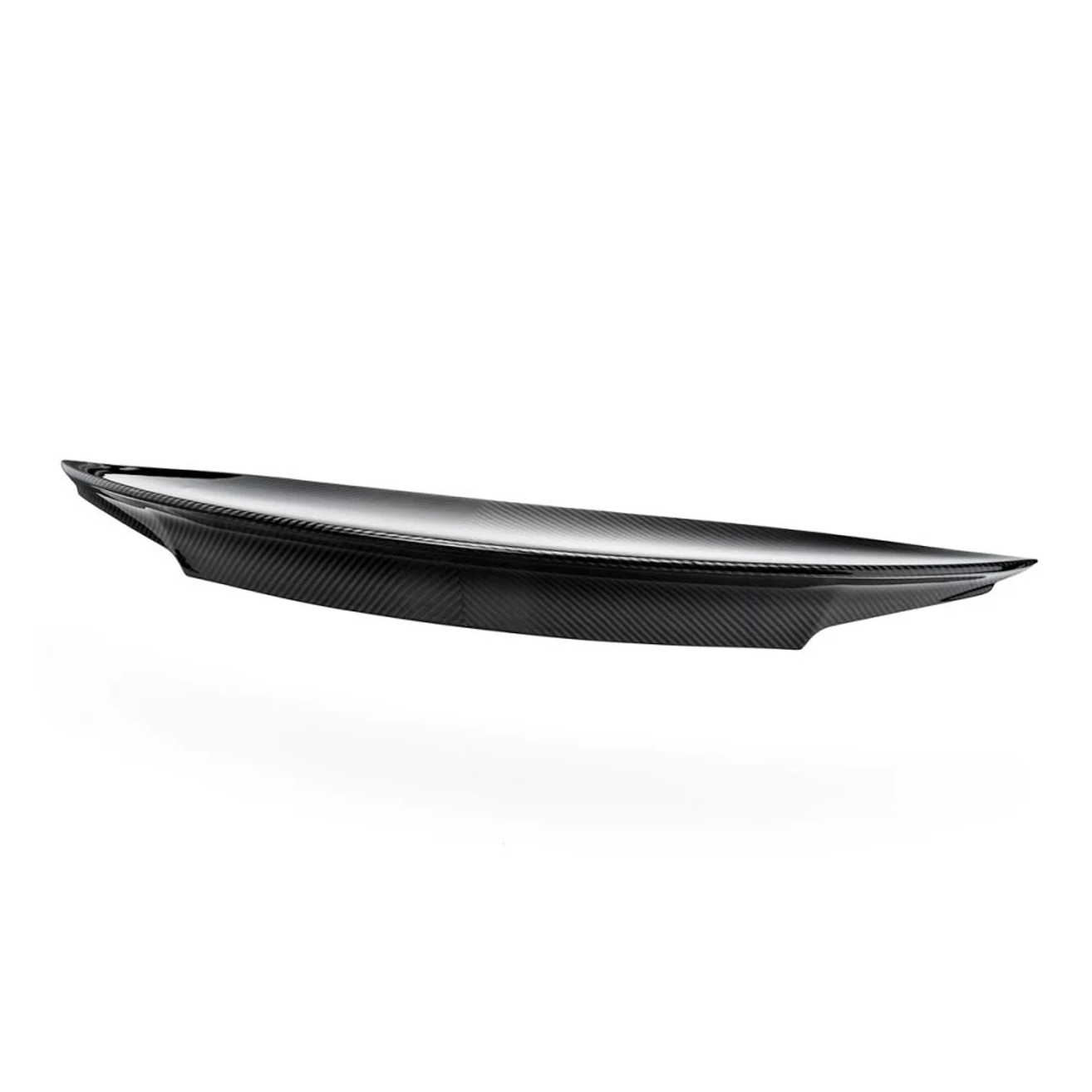

CARBON FIBER LONGTAIL SPOILER

INSTALLATION GUIDE

• UP Rear Spoiler
• Adhesive Promoter

NOTE: Keep in mind that if you have paint protection products on your vehicle such as Ceramic Coating, Paint Protection film, or any other protective coating that may reduce a proper adhesive bond MUST be removed in the areas where the adhesive makes contact with the vehicle. Failure to remove paint protection materials prior to installation may lead to accelerated failure of the adhesive bond, and damage the product. Improper installation of this product is not covered by our limited parts warranty. If the above note is unclear, please contact our support team at support@unpluggedperformance.com, or consult local experts in paint protection services for further support.

• Microfiber cloths
• Surface cleaner (rubbing alcohol preferred as it will not leave any residue)
• Masking tape
• Exterior trim clip removal tool
• 10mm socket or wrench
• Multiple people to aid the installation process
• Medium Stretch Fishing Line (8-14lb test)

By installing or using this product, you understand and agree with the following: If you do not agree, do not proceed with the installation and return this product within 30 days for a full refund of the purchase price from the company from which you have purchased it.

• I understand and agree that this product is intended to be installed for use on private roads and in jurisdictions where the use of this product is deemed legal by the local authorities. Furthermore, I understand and agree Unplugged Performance does not have any knowledge or control of regulations in my local jurisdiction, and it is up to me to determine if the product is acceptable for use with my vehicle.
• I understand that Unplugged Performance has done testing of this product on road and on closed racetracks but does not have the ability to test the vehicle for localized standards and regulations.
• I understand and agree that if the vehicle manufacturer determines that any Unplugged Performance products have contributed to a problem with the vehicle it may affect the vehicle’s warranty. Furthermore, I understand and agree that Unplugged Performance has no duty nor ability to be involved in internal manufacturer decisions.
• I understand and agree that if this product is given to an installer for installation on my vehicle, I have read and agreed with all the previous, even if I am not personally installing these parts on my vehicle. Furthermore, I understand and agree that this product should be installed by a trained professional that is familiar with both the vehicle as well as this product. Furthermore, I understand and agree that I and/or my chosen installer will follow the installation instructions carefully and dutifully test the vehicle post-installation in a safe and controlled environment to ensure proper operation.
• I understand and agree that by installing this product Unplugged Performance and all associated persons and entities as well as the vehicle manufacturer and all associated entities must be held harmless in the event of any suit, damages, or other legal action. Furthermore, I hereby release Unplugged Performance and any associated entities from any and all liability for any potential claim or claims.

If you do not agree with any of the above statements, you should return the product immediately. For more information please see our Terms and Conditions.

If your Model S has a factory trunk spoiler, be sure to remove it from the vehicle. This can be done by having one person slowly pull the factory rear trunk spoiler away from the vehicle while another uses a piece of fishing line to cut through the factory adhesive as shown below. Be sure to apply minimal pressure to the fishing line to avoid damage to the factory paint during the removal process. It may also be helpful to lay down some masking tape around the edges of the factory spoiler to prevent scoring the paint in an exposed area.

Now that you have removed the OEM spoiler, you will need to clean any trapped debris from the trunk to allow the new spoiler to properly adhere to the trunk. You’ll first want to use compressed air to remove any dirt and dust particles. This will allow you to apply pressure during the adhesive removal process without pushing dirt into the paint.

Next, you will use a non-abrasive adhesive remover on the excess material left over. You’ll want to follow the same steps to remove the OEM Tesla badges as well.

Now that your trunk has been thoroughly cleaned, you’re ready to test fitment! When aligning the spoiler on the trunk, you’ll want to focus on the bottom alignment first to ensure proper paint coverage as shown below.

Once your desired placement has been achieved, trace the outline of the trunk spoiler with masking tape as a reference line for final installation. This will also be used as reference when applying the provided adhesive promoter to the paint surface of the trunk. Once the tape has outlined the final intended position of the spoiler, remove the spoiler from the vehicle.

Next, prep the spoiler by removing a small lead end of each section of adhesive backing tape as shown in the photo below. These will act as pull tabs during installation. You can also add masking tape to the lead ends for easier access to the pull tabs as shown below.

Next, apply the provided adhesive promoter to the areas where the rear spoiler adhesive will make contact with the painted surface of the trunk. Use the masking tape line as reference.

Then, place the rear spoiler on the trunk of the vehicle following your masking tape reference line. Once the spoiler is fitted to the vehicle, apply pressure toward the spoiler while using the lead end pull tabs to remove the adhesive backing, starting with the lower section of the spoiler.

Then, push the top of the spoiler forward while lifting the outer edge as shown below.

With the backing tape removed from the top and bottom sections of the spoiler, apply downward pressure to the bonded areas.

Now that the backing tape has been removed on the upper and lower sections of the spoiler, proceed to remove the backing tape from the sides of the spoiler.

Congratulations! Your Tesla Model S Carbon Fiber Longtail Spoiler installation is complete. The adhesive will begin to set within a few hours; please avoid moisture (rain, washing, or detailing) for at least 24 hours to ensure a proper cure. Otherwise, you’re all set to go!
