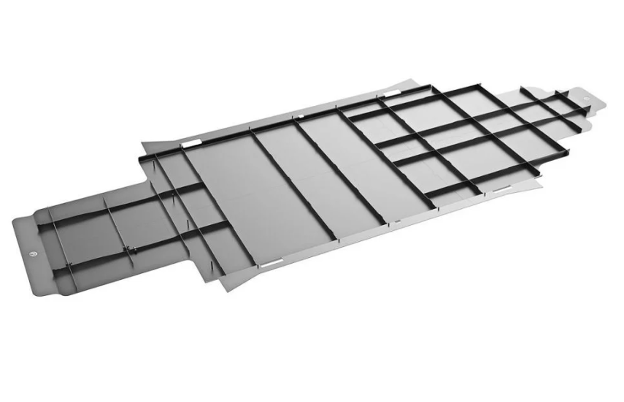

TESLA CYBERTRUCK UP INVINCIBLE®

HD UNDERBODY ARMOR

INSTALLATION GUIDE

• FRONT ARMOR STRUCTURE – QTY 1
• FRONT MID ARMOR STRUCTURE – QTY 1
• REAR MID ARMOR STRUCTURE – QTY 1
• REAR ARMOR STRUCTURE – QTY 1
• FRONT ARMOR SHIELD – QTY 1
• FRONT MID ARMOR SHIELD – QTY 1
• REAR MID ARMOR SHIELD – QTY 1
• REAR ARMOR SHIELD – QTY 1

NOTE: Most factory hardware will not be re-used unless specified. However, be sure to keep all factory hardware until the final install is complete.

• 4mm Allen Socket
• 10mm Socket
• 13mm Socket
• 15mm Socket
• 13mm End Wrench
• Impact Gun or Ratcheting Wrench
• Lift Table (Will be needed to lift the armor panels onto the truck safety)
• Torque Wrench
• Safety Gloves

Please see individual steps for torque specs.

By installing or using this product, you understand and agree with the following: If you do not agree, do not proceed with the installation and return this product within 30 days for a full refund of the purchase price from the company from which you have purchased it.

• I understand and agree that this product is intended to be installed for use on private roads and in jurisdictions where the use of this product is deemed legal by the local authorities. Furthermore, I understand and agree Unplugged Performance does not have any knowledge or control of regulations in my local jurisdiction, and it is up to me to determine if the product is acceptable for use with my vehicle.
• I understand that Unplugged Performance has done testing of this product on road and on closed racetracks but does not have the ability to test the vehicle for localized standards and regulations.
• I understand and agree that if the vehicle manufacturer determines that any Unplugged Performance products have contributed to a problem with the vehicle it may affect the vehicle’s warranty. Furthermore, I understand and agree that Unplugged Performance has no duty nor ability to be involved in internal manufacturer decisions.
• I understand and agree that if this product is given to an installer for installation on my vehicle, I have read and agreed with all the previous, even if I am not personally installing these parts on my vehicle. Furthermore, I understand and agree that this product should be installed by a trained professional that is familiar with both the vehicle as well as this product. Furthermore, I understand and agree that I and/or my chosen installer will follow the installation instructions carefully and dutifully test the vehicle post-installation in a safe and controlled environment to ensure proper operation.
• I understand and agree that by installing this product Unplugged Performance and all associated persons and entities as well as the vehicle manufacturer and all associated entities must be held harmless in the event of any suit, damages, or other legal action. Furthermore, I hereby release Unplugged Performance and any associated entities from any and all liability for any potential claim or claims.

If you do not agree with any of the above statements, you should return the product immediately. For more information please see our Terms and Conditions

Before you begin your installation, be sure that your Cybertruck is in the tallest setting. If possible, we highly recommend using a 4 post lift with blocks to place underneath the vehicle in order to raise it. We also recommend turning off bluetooth to ensure that the truck’s entry height mode is not triggered by a nearby phone key as this may pose a safety concern.

Using a 4mm Allen key, remove each M6x1x20mm tapered bolt securing each underbody armor panel to the structure. (61 bolts and 61 washers total)

Now that the armor has been fully disassembled, using a 10mm socket, remove 3 factory bolts securing the rear underbody panel to the vehicle.

Using a 15mm socket, remove the 3 factory bolts securing the front of the rear underbody panel to the vehicle.

Support and lift the rear armor structure to the vehicle. Using a 10mm socket, loosely fasten 3 M6x1x45mm bolts, M6 washers, and BUSH#1 spacers to secure the rear armor structure to the vehicle.

Using a 13mm Socket, fasten 3 M10x1.5x70mm bolts, washers, and BUSH#3 spacers to secure the rear armor structure to the vehicle.

Support and lift the rear mid armor structure to the vehicle. Using a 13mm Socket, fasten 3 M10x1.25x45mm bolts, 3 M10 washers, and BUSH#3 spacers to loosely secure each side of the rear mid armor structure to the vehicle.

Using a 13mm socket and 13mm wrench to counterhold, loosely fasten 10 M8x1.25x50mm bolts, 20 M8 lock washers, 10 M8x1.25 lock nuts, and 5 SHIM#1 spacers to secure the rear armor structure to the rear mid armor structure.

Support and lift the front mid armor structure to the vehicle. Using a 13mm socket, loosely fasten 4 M10x1.25x45mm bolts, washers, and BUSH#2 spacers to loosely fasten each side of the front mid armor structure to the vehicle.

Using a 13mm socket and 13mm wrench to counterhold, loosely fasten 10 M8x1.25x50mm bolts, 20 M8 lock washers, 10 M8x1.25 lock nuts, and 5 SHIM#1 spacers to secure the rear mid armor structure to the front mid armor structure.

Support and lift the front armor structure to the vehicle. Using a 10mm socket, loosely fasten 4 M6x1x45mm bolts, M6 washers, and BUSH#1 spacers to secure the front armor structure to the vehicle.

Using a 13mm socket, loosely fasten 2 M10x1.25x45mm bolts, 2 washers, and 2 BUSH#2 spacers to secure each side of the front mid armor structure to the vehicle.

Using a 13mm socket and 13mm wrench to counterhold, loosely fasten 10 M8x1.25x50mm bolts, 20 M8 lock washers, 10 M8x1.25 lock nuts, and 5 SHIM#1 spacers to secure the front mid armor structure to the front armor structure.

Now that the structure has been assembled on the car, final torque should be applied in the following order. 1. subframes, 2. side rails, 3. armor connection points.

Torque subframe hardware to 17 ft/lbs

Torque side rail hardware to 17 ft/lbs

Torque armor connection points to 17 ft/lbs

Now you can begin to install the armor shield, starting with the rear-most panel, and then working your way to the front-most panel. Be sure to install all provided hardware loosely prior to applying final torque to ensure that the panel alignment is correct.

Using a 4mm Allen key, loosely fasten each provided M6x1x20mm tapered bolt and washer to secure each underbody armor panel to the structure. Start with the rear Under Armor Shield, and work your way forward to ensure that each hole lines up between panels. Support each panel using either a table jack, or a second set of hands as any panel flex may affect ease of installation. Repeat this step for each panel from the rear of the vehicle toward the front of the vehicle. (61 bolts and 61 washers total)

Using a 4mm allen key, fasten 10 provided M6x1x16 bolts and M6 lock washers to secure each armor panel together. (30 bolts and 30 lock washers total)

Once all hardware is installed, apply final torque to all 61 bolts. Using a 4mm allen socket and a torque wrench, torque to 10 ft/lbs. Be sure to check torque on each bolt a few times through to ensure that nothing was missed.
Next, apply final torque to all 30 bolts. Using a 4mm allen socket and a torque wrench, torque to 10 ft/lbs. Be sure to check torque on each bolt a few times through to ensure that nothing was missed.

Congratulations! Your Cybertruck INVINCIBLE underbody armor Installation is complete!
